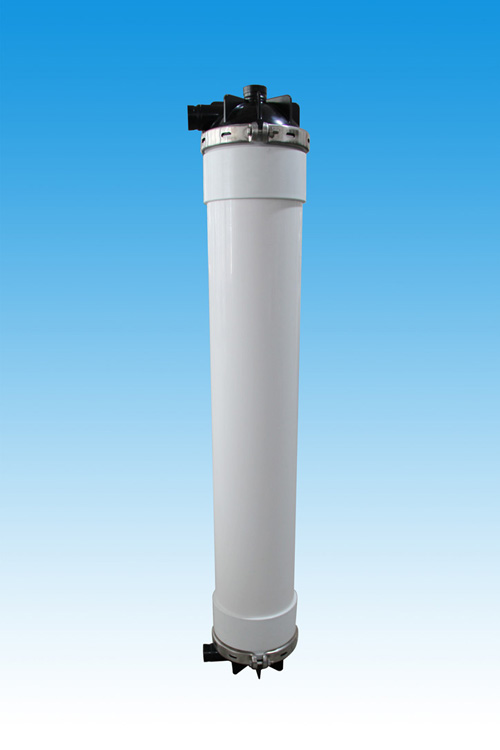

hollow fiber inside / outside ：0.9mm/1.6mm (1bore) , 0.9mm/ 4.2mm ( 7bore)

membrane active area：50㎡

THE max water operation 0.5MPa ,11000L/H pure water flux, stable operation, high anti-pollution, high mechanical strength, Can adopt 200ppm residual chlorine,  PH2-13, absolutly sterilization. turbidity＜0.1NTU, Cross flow design, eliminate the dirty & block and improve the life

1 center pipe structure design make the  water distribution is more even and better back washing effect.

2. both each side output water, makes it good back wash performance

3. Quick joining piping joint design,easy and fast installation, high leakproofness

4.Stainless steel band structure, deformation, no leaking

5. the end cap can  load bearing, the module can hang on the support bracket vertically, no need fixation
