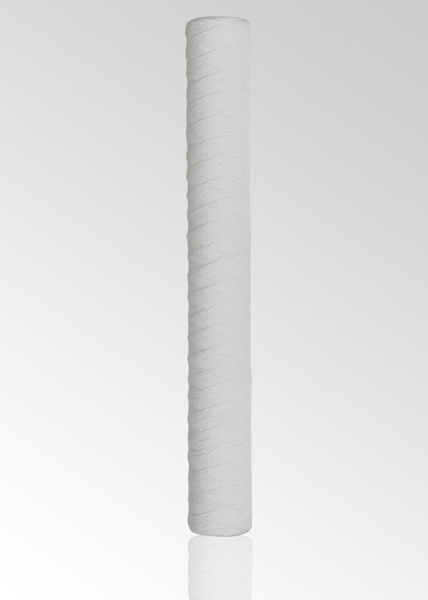

Wire wound filter prodcued by special fibrous filter as the filter material, with yarn winding shape of internal structure, can effectively capture, intercept and hold all kinds of impurity particles. Therefore, the filter is also called hive type wound  filter, can be control winding tightness and size to achieve different filtration precision and filtration efficiency and specifications.

◆date

1、material：Polypropylene, cotton wool and glass fiber

2、cartridge dia：28 or 30mm

3、cartridage outer dia：57/60/63.5/65/115mm

4、filtering port isze：0.5/1/3/5/10/20/30/50/75/100um

5、preussure：≤0.5Mpa

6、temperature：PP≤80℃，Absorbent cotton filteR ≤120℃，glass fiber filter≤250℃

FUNCTION：

●Can effectively capture and block all kinds of impurity particles in liquid；

●With the depth of the cellular structure, has a large amount of sludge and interception good performation ；

●Filter material fiber does not fall off；

●Acid and alkali resistance, suitable for PCB, electroplating, chemical production process requirements；

●Good precision control , can be more choice model precision；

●cheap cost:Suitable for a large number of popularization and application, and replace the simple, easy to operate.

 Suitable for PCB, plating, semiconductor, photoelectric, ultrasonic, chemical, oil, water and other liquid filtration.
